TL-69A17
TAILAI
3506990000
dvantage:
Good peel adhesion,temperature and climate resistance property.
Physical property:
Model Item | TL- 69A17 | |

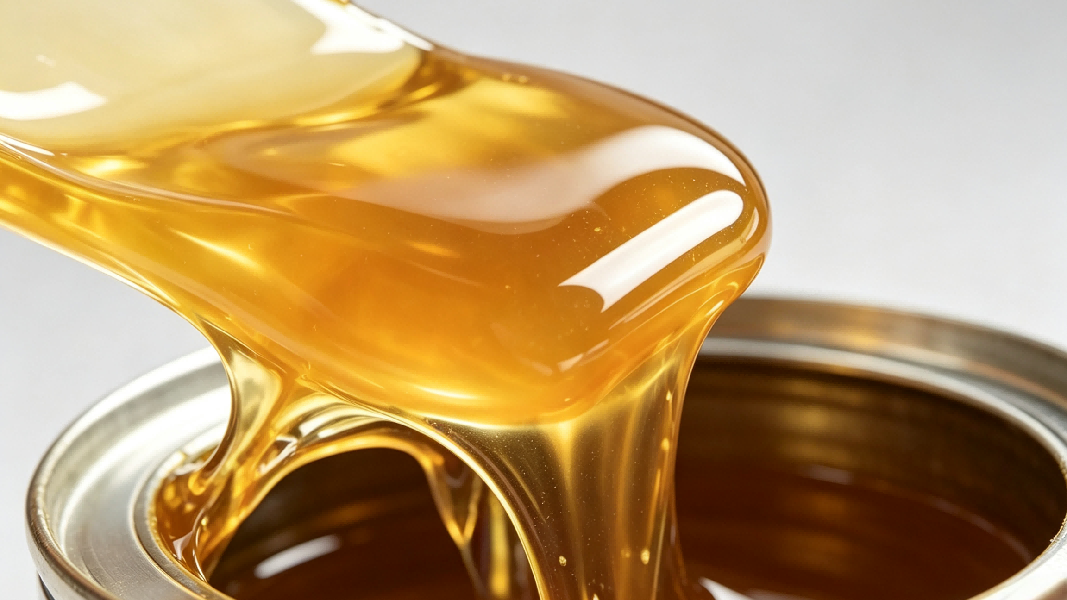

appearance | Viscous liquid | eye |
Solid content（%） | 45±1 | GB/T 2793- 1995 |
viscosity（cps） | 4000-8000 | GB/T 2794-2022 |
solvent | Ethyl acetate | - |
Testing data（structure：25μm PET/25μm AD）:
Item | data | standard |
adhesive (μm） | 25 | GB/T 7125-2014 |
Initial tack（ball，#） | 6 | GB/T 4852-2002 |
Peel strength（20min 、180°)（N/25mm） | 14.2 | GB/T2792-2014 |
viscosity（80℃* 1Kg ，mm） | 0.1 | GB/T4851-2014 |
Popular application:

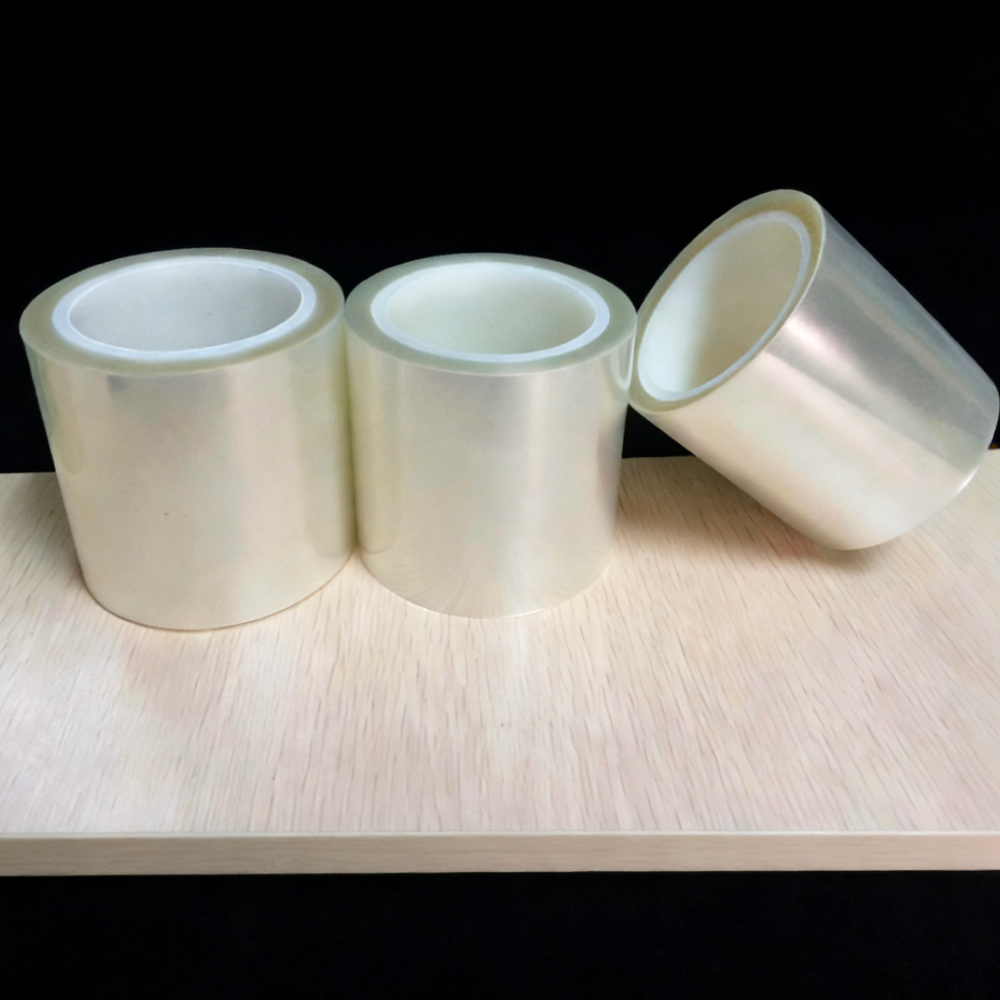

PET tape ,prism film,tapes with high tack and high temperature resistance property and double sided adhesive tape for tissue paper.
Item | data | standard |
adhesive (μm） | 65 | GB/T 7125-2014 |
Initial tack（ball，#） | 19 | GB/T 4852-2002 |
Peel strength（20min 、180°)（N/25mm） | 25. 1 | GB/T2792-2014 |
viscosity（80℃* 1Kg） | 72h /OK | GB/T4851-2014 |
Application data（65 μm AD/34μm tissue paper/65μm AD）:
Ratio： 6917A：L75=100:1
Ratio： 6917A：L75=100:1
Structure :
Instruction for use:
Suggest ratio： 6917A：L75=100:1.
Drying，100- 120℃ , 2min.
(note：adjust based on your coating machine details).
Curing time：40℃*72h 或 25℃*7d.
Standard Package:
Ton barrel &200kgs barrel
Suggest Storage:
Storage :3 months against manufacturing 。Storage condition：5-35℃，avoid direct sunshine Temperature between （0℃& 35℃ ，humidity（70%RH
Notes:
Avoid physical contact and wear personal protective equipment such as gloves and goggles when using. Please refer to the MSDS for details.
Comment：
All data in this document were tested under laboratory standard conditions, and the data are typical test values, not guaranteed values.
Special Note When selecting products, please fully evaluate the production conditions and application scenarios. If you encounter any problems, please contact our technical service department, and we will be dedicated to providing you with services. |
