A laminate can look flawless when it leaves the machine yet begin peeling during slitting, heat sealing, filling, transport, or storage. When film, ink, foil, coating, and adhesive no longer hold together as one structure, the package may lose strength, appearance, and barrier reliability.
The cause is rarely the adhesive alone. Surface treatment, substrate compatibility, coating uniformity, drying conditions, and mechanical stress all influence bond performance. Understanding these interactions helps converters diagnose failures accurately and determine where a water-based laminating adhesive can improve stability—and where process corrections are still essential.
The production stage at which separation first appears can narrow the investigation. Bubbles, whitening, or weak adhesion directly after lamination often point toward poor wetting, insufficient coating, or incomplete drying. Edge lifting during slitting is more likely to involve low developed bond strength, excessive winding stress, or uneven adhesive transfer. Delamination near pouch seals may indicate heat-related shrinkage, while delayed separation after filling or storage suggests environmental exposure or internal stress that was not visible during initial inspection.
Failure pattern | When it appears | Likely area to investigate | First check |
Bubbles or haziness | At lamination | Wetting and drying | Surface condition and oven performance |
Edge peeling | Slitting or rewinding | Bond development and tension | Peel strength and winding settings |
Separation near seals | Pouch making | Heat and dimensional stress | Seal temperature and film shrinkage |
Delayed peeling | Storage or use | Moisture, temperature, or contents | End-use resistance testing |
A peel result should be evaluated by appearance as well as force. When one surface is nearly clean, failure may have occurred between the adhesive and that substrate because the surface was contaminated, under-treated, or chemically incompatible. Adhesive residue on both plies points more strongly toward cohesive failure within the bond layer. Ink transferred to the opposite film can reveal weak ink anchorage or an ink–adhesive interaction rather than failure of the flexible packaging adhesive alone.
Effective bonding begins with intimate contact between the liquid adhesive and the substrate. Many polymer films naturally have low surface energy, so an untreated or poorly treated surface may cause the coating to retract, form voids, or remain weakly attached. Corona treatment raises surface energy and improves the ability of inks, coatings, and adhesives to wet films, foils, and paper.
Treatment can also decay during storage, particularly when films contain migrating slip agents or other additives. Dust, oil, fingerprints, condensation, and contamination from handling create additional barriers between the film and the water-based laminating adhesive. Raising coat weight does not correct the underlying problem because the liquid still cannot establish uniform contact. Surface condition and treatment side should therefore be verified immediately before production rather than assumed from earlier measurements.
Compatibility must be assessed across the complete construction, not simply between two named films. The bond may involve PET, BOPP, CPP, PE, nylon, aluminum foil, metallized coatings, primers, and a printed ink surface, each with different polarity and mechanical behavior. An adhesive that performs well on a simple film-to-film structure may not provide the heat, moisture, or chemical resistance needed for a demanding barrier package.
The weakest layer may also sit beneath the adhesive. Poorly anchored ink can lift from the film, while a weak metallized layer can separate internally even though the flexible packaging adhesive remains attached to it. Thermal expansion and shrinkage differences between plies add stress during heat sealing or hot filling. Selection should therefore begin with the final package structure and service conditions, not with a general-purpose product description.
Low coat weight can leave uncovered areas and insufficient material to accommodate microscopic surface variation. Uneven transfer, unstable viscosity, worn rollers, foaming, or rapid changes in line speed may produce alternating strong and weak zones across the web. Excess adhesive creates a different problem: a thick layer may require more drying capacity and can trap water before the second substrate is applied.
Drying must convert the wet coating into a continuous adhesive film. In an acrylic waterborne system, polymer particles are initially dispersed in water. As the carrier evaporates, those particles move closer together and form a coherent bonding layer. If evaporation or film formation remains incomplete, the laminate may show whitening, bubbles, low initial strength, or delayed separation. Stable coating and controlled water removal matter more than simply applying a larger amount of water based lamination adhesives.
A sound laminate can still fail when mechanical loading exceeds the strength developed at the interface. Excessive unwind or rewind tension, hard winding, uneven nip pressure, sharp folding, and film strain can store stress inside a roll. Pouch making then concentrates that stress around slit edges, gussets, corners, and seal areas.
Temperature and moisture can further change the dimensions or properties of the layers. Heavy contents, oils, chemicals, repeated flexing, freezing, pasteurization, and transportation vibration may expose weaknesses that an early peel test does not reveal. For this reason, the selected flexible packaging adhesive must be evaluated after realistic conversion and use, not only after lamination.

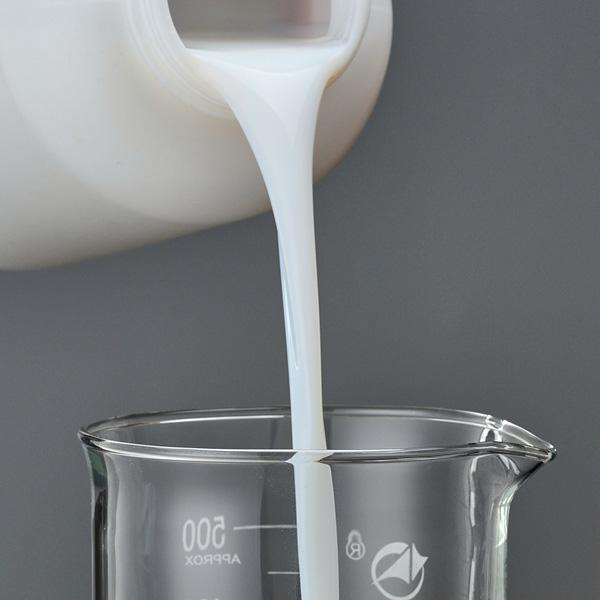

Water based lamination adhesives use water as the principal carrier rather than relying on an organic solvent carrier. Once the water is removed, the polymer remains as the bonding layer. This avoids introducing the same adhesive-related retained-solvent pathway associated with solvent-borne lamination, which can contribute to odor, bubbles, and localized bond weakness when drying is incomplete.
Waterborne technology can also reduce volatile organic compound emissions because less organic solvent is present to evaporate during application and cleanup. These benefits can support cleaner production and improved working conditions, but delamination prevention remains primarily a question of wetting, drying, and bond durability. A water-based system must still be matched to the package structure and controlled throughout the coating process.

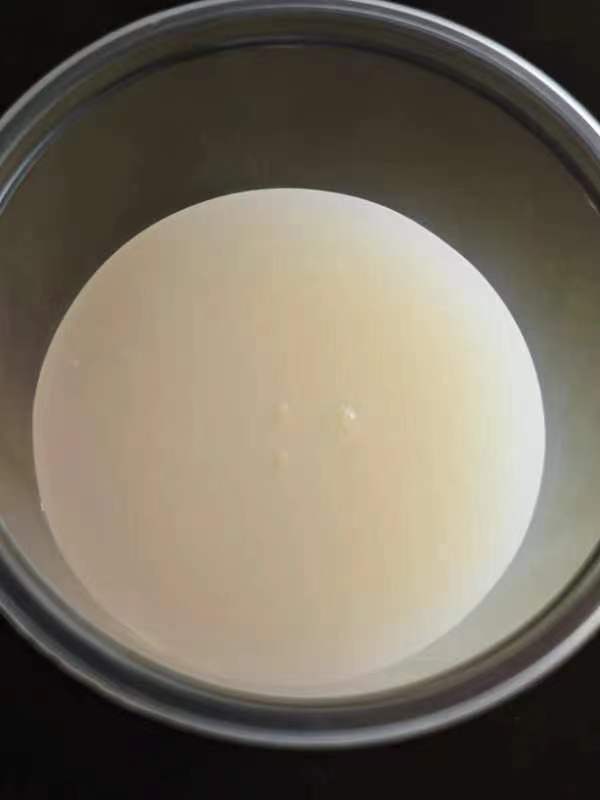

Acrylic emulsions can combine low application viscosity with relatively high polymer solids. After water evaporates, the dispersed particles consolidate and fill the available space at the interface. The resulting film can provide the clarity, leveling, peel strength, and flexibility required for many film-to-film and film-to-foil structures.
This mechanism helps the bond tolerate slitting, folding, and routine package movement when the formulation matches the substrates. Properly formulated waterborne acrylic systems can deliver adhesion and seal performance suitable for many medium-performance laminate structures. That capability should not be treated as universal approval for every application; each water-based laminating adhesive still requires structure-specific qualification.
Adhesive selection should begin with a written description of the entire package. Record the film grades and thicknesses, treatment sides, printed surface, ink type, metallization or foil, sealant layer, and any primers or coatings. The same nominal PET/PE construction can behave differently when film additives, ink coverage, treatment age, or sealant formulation changes.
End-use conditions establish the required performance level. Filling temperature, sealing temperature, humidity, freezing, oil exposure, storage duration, and transport stress should all be documented before trials begin. A water-based laminating adhesive intended for ordinary dry goods should not automatically be approved for hot-fill, boil-in-bag, chemical, or high-temperature applications. The qualification target is the finished package, not merely successful bonding between laboratory film samples.
A repeatable process window needs measurable limits rather than subjective instructions such as “coat evenly” or “dry thoroughly.” The production record should cover:
● Adhesive solids, pH, viscosity, temperature, and preparation history.
● Wet or dry coat weight, coating uniformity, and readings across the web.
● Oven-zone temperatures, airflow condition, line speed, and dwell time.
● Nip pressure, web tension, winding hardness, and substrate batch details.
These controls should be linked to acceptable peel results and visual quality. Operators must know which values are critical and what action to take when one moves outside the validated range. Stable documentation also allows a converter to distinguish an adhesive problem from a material, machine, or handling change.
Drying is not controlled by temperature alone. Airflow removes moisture from the coating surface, dwell time determines how long evaporation can continue, and coat weight determines how much water must leave the web. Increasing oven temperature without enough air exchange may heat the films while still leaving moisture in the adhesive layer.
Line speed should therefore be set against actual oven capability. A faster web shortens residence time, while a heavier coating raises the evaporation load. The target is complete, even drying without distortion, blocking, loss of print quality, or damage to heat-sensitive films. Production speed is acceptable only when the water-based laminating adhesive forms a continuous film across the full web.

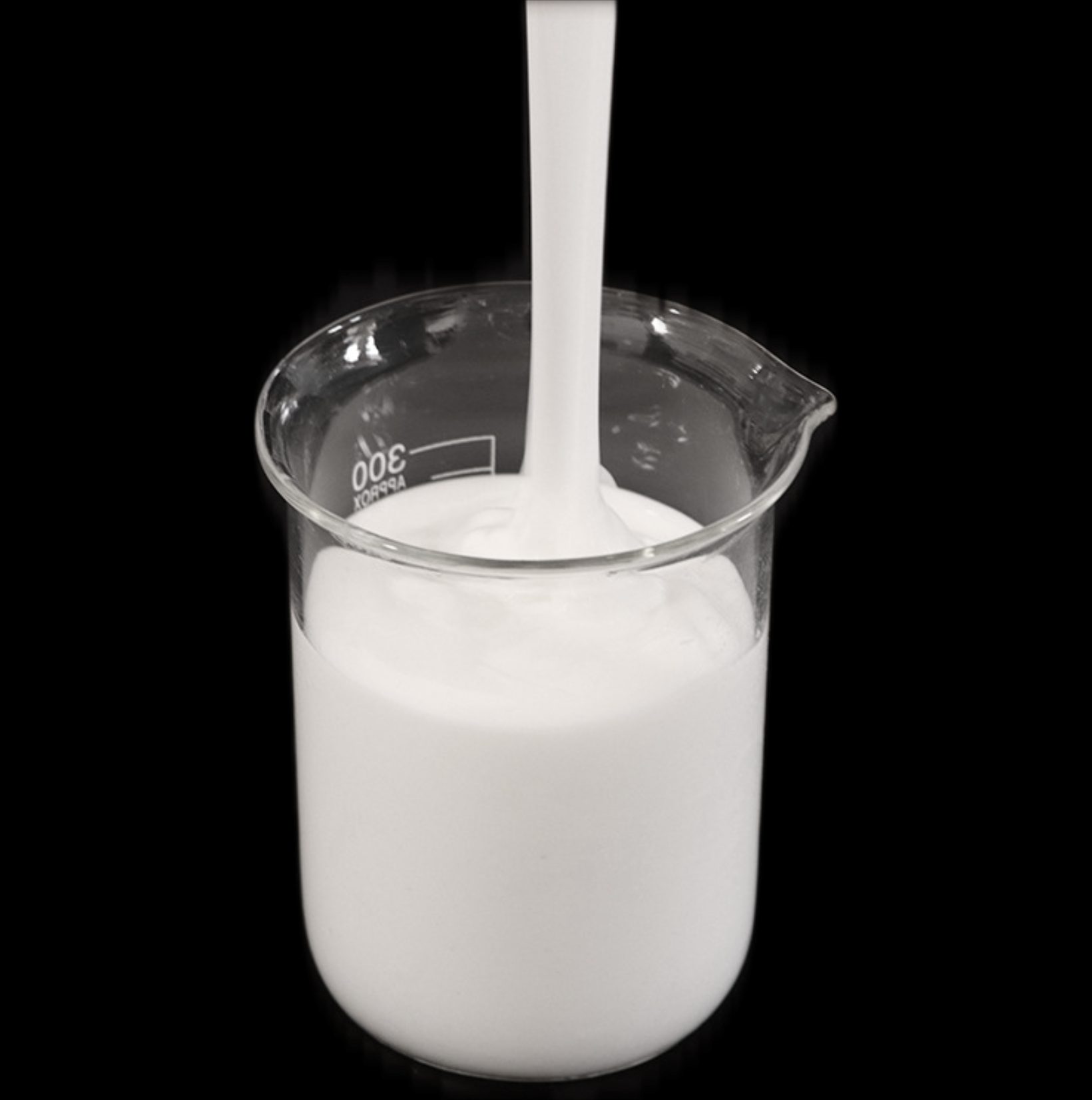

TAILAI TL-08L is a single-component acrylic water-based laminating adhesive that offers a practical starting point for production trials, with 43±2% solids, a pH range of 6.5–8.0, and rotational viscosity of 15–50 mPa·s. Compatible substrates include BOPP, PET, CPP, and PE. Typical starting conditions include 1–3 g of dry adhesive, a drying temperature of 85–95°C, and coating speeds below 150 m/min.
Those values are starting conditions, not automatic production settings. Oven length, airflow, coating equipment, film thickness, ink coverage, humidity, and the finished package requirement can shift the workable range. Substrate compatibility, drying time, tack, and viscosity may also need adjustment for different lamination processes. A reliable trial converts these specifications into plant-specific evidence before the flexible packaging adhesive is released for routine production.
Peel testing should capture both force and failure mode. Compare initial handling strength with the bond after the defined conditioning period, and take samples from the operator side, center, and drive side of the roll. A strong average can hide large cross-web variation, while an apparently low number may reflect film stretch, tearing, or failure within an ink layer.
A standardized flexible-laminate peel procedure can be used to separate the plies and measure bond strength at both initial and fully developed stages. The exact protocol should match the application, but specimen preparation, width, direction, test speed, conditioning time, and failure interface must remain consistent. Results become more useful when the measured force is recorded together with the visible failure mode.
Approval testing should continue through downstream conversion. Useful checks include:
● Peel testing after slitting and the required conditioning period.
● Inspection after folding, gusseting, heat sealing, or pouch making.
● Exposure to relevant temperature, humidity, filling media, or storage conditions.
● Comparison of retained samples from trial and production rolls.
A laboratory bond is only one part of laminate performance. The complete structure should remain intact after the forces, heat, moisture, and handling expected in service. Release the selected water-based laminating adhesive only when those simulated conditions produce stable results with an acceptable failure mode.
Preventing delamination requires more than changing one material. Reliable laminates depend on clean, properly treated substrates, compatible inks and films, uniform coating, complete drying, controlled web tension, and testing under real converting and storage conditions. A water-based laminating adhesive can reduce solvent-related risks, but only when the full process window is stable.
CHUZHOU TAILAI IMPORT&EXPORT TRADING CO.,LTD. supplies water based lamination adhesives and supports product selection or formulation adjustment for different substrates and coating conditions. This practical approach helps converters improve bond consistency, reduce avoidable waste, and qualify a flexible packaging adhesive around the finished package rather than a generic specification.
A: Common causes include low surface energy, contamination, incompatible films or inks, uneven adhesive coating, incomplete drying, excessive web tension, and exposure to heat, moisture, or package contents.
A: It can reduce delamination risk when matched to the substrates and applied correctly. Reliable bonding still requires proper surface treatment, uniform coating, complete water removal, and controlled converting conditions.
A: The bond may not have developed sufficient strength before conversion. Slitting tension, hard winding, sharp folds, film shrinkage, and heat-sealing stress can expose previously hidden weaknesses.
A: Drying should balance oven temperature, airflow, dwell time, coat weight, and production speed. The water must evaporate evenly before the second substrate traps moisture inside the laminate.
A: Inspect both peeled surfaces and record the failure location. Clean separation suggests interfacial failure, adhesive on both sides indicates cohesive failure, and transferred ink may reveal weak ink anchorage.
