A pressure-sensitive adhesive can feel secure at first and still fail later. A label may lift at the edge, a protective film may leave residue, or a mounted part may slowly slip under load. These problems are easy to misread because tack, peel, and shear measure different stages of bond performance.
Pressure sensitive adhesive testing separates immediate grab, removal resistance, and long-term holding power. Understanding how each test works—and which conditions can change the result—helps engineers, converters, and buyers compare data more accurately, identify likely failure modes, and choose a PSA profile suited to the real application.
Tack, peel, and shear examine different moments in the life of a PSA bond. Tack covers the first seconds of contact, peel evaluates controlled separation, and shear measures movement or failure under a sustained parallel load. Low tack can cause poor transfer or immediate lifting; unsuitable peel can lead to curled edges, difficult removal, or surface damage; weak shear often appears later as creep or gradual detachment. None of the three tests can replace the others.
Measurement | When It Matters | Typical Result | Main Risk Revealed |
Tack | Initial application | Force, distance, or ball number | Poor transfer or lifting |
Peel | Controlled removal | Force per unit width | Edge lift or excessive removal force |
Shear | Sustained parallel load | Holding time or displacement | Creep and delayed failure |
A removable protective film needs enough tack to apply smoothly, but its peel must remain controlled for clean removal. Mounting or double-sided tape may place greater value on shear resistance because the bond must hold its position under load. A softer PSA can wet a surface quickly and produce strong initial grab, yet that mobility may reduce long-term resistance to creep. Pressure sensitive adhesive testing should therefore define acceptable ranges for each property instead of treating maximum values as the automatic goal.
Loop tack measures the force required to separate an adhesive-coated loop shortly after it contacts a defined surface. ASTM D6195 includes tensile-tester and loop-tack-tester procedures for adhesives that develop measurable strength rapidly after contact. Backing stiffness affects the result, so the adhesive cannot be evaluated independently of the specimen construction. This type of test is especially useful for research and quality control when a repeatable force measurement is required.
Rolling-ball tack uses a different mechanism. A steel ball travels down an incline and across the exposed adhesive, with the result reported as travel distance or an associated ball number. This is not a separation-force measurement, so rolling-ball and loop-tack values cannot be converted or ranked on the same scale. A claim such as “high tack” is meaningful only when the method and reporting convention are identified.
Tack depends strongly on how the specimen meets the surface. Panel material, cleaning, contact time, pressure, test speed, temperature, adhesive thickness, and backing flexibility can all change the recorded value. Even with the same formulation, a flexible film may create more effective contact than a stiff carrier. Comparisons are valid only when these variables are controlled.
The production requirement determines what the result should mean. High-speed labeling may need rapid wet-out, protective film must apply without bubbles or edge lift, and repositionable material should not grab too aggressively. Strong initial tack confirms fast bond formation, not long-term holding power. Repeated measurements also help distinguish ordinary specimen variation from a meaningful change in adhesive performance. A useful pressure sensitive adhesive testing record should therefore include the method, substrate, contact conditions, specimen construction, temperature, and results from multiple samples.
Peel testing removes a bonded strip from a defined surface at a controlled angle and rate. ASTM D3330/D3330M includes procedures for single-coated, double-coated, transfer, and liner-release constructions, including 180-degree and 90-degree peel configurations. Different procedures must be selected according to the tape construction and the interface being evaluated.
Angle changes the way force travels through the backing and adhesive layer, so a 90-degree value is not equivalent to a 180-degree result. Speed also matters because PSA response varies with the rate of deformation, while dwell time controls how long the adhesive has to develop surface contact. Backing stiffness and extensibility can further affect how much of the measured force comes from the adhesive interface rather than deformation of the test strip. Every value should identify angle, speed, specimen width, panel or application substrate, application pressure, dwell time, temperature, and units such as N/25 mm or N/cm. The method is most useful for quality assurance and controlled comparisons when the same procedure and conditions are used consistently.
Average peel force does not describe everything that happens during removal. Adhesive failure occurs at the substrate interface, while cohesive failure splits the adhesive layer and may leave residue; backing stretch, tearing, or substrate damage can create additional failure patterns. Two samples with similar averages may therefore behave very differently in the finished application. A stable numerical result is not a functional pass when the removal process leaves contamination or damages a decorative surface.
The force trace and the removed surfaces should be examined together. Sharp peaks, unstable release, edge lift, residue, whitening, and visible damage may matter more than a small numerical difference, especially for protective films. A smooth force curve generally indicates more consistent release than repeated peaks and drops, although the reason for irregular behavior must be investigated rather than assumed. Short- and long-dwell tests can also reveal how peel resistance builds as wet-out develops. Standardized peel results are valuable for comparison and quality control, but they may not directly predict every functional requirement, so application trials remain necessary.
Static shear applies a sustained force parallel to the bonded surface. A specimen with a defined contact area is attached to a vertical panel, loaded with a specified weight, and monitored for time to failure or displacement. This setup exposes slow deformation that may not appear in a quick tack or peel test. ASTM D3654/D3654M covers the ability of pressure-sensitive tapes and labels to remain adhered under a constant parallel load.
Longer holding time generally indicates stronger creep resistance under the stated conditions, but the test context controls the meaning. Bonded area, weight, panel material, dwell time, adhesive thickness, backing, and temperature must match before results can be compared. “No failure” is incomplete unless the report gives the test duration and stopping rule. The observed mode—gradual movement, sudden release, cohesive splitting, or edge creep—should accompany the time value. This makes shear testing particularly relevant to mounting, double-sided tape, packaging, and other applications exposed to continuous loads.
A PSA that holds at room temperature may soften and move during hot storage, transport, processing, or outdoor service. Elevated-temperature shear testing accelerates this behavior and can expose weaknesses hidden by a short ambient test. An elevated-temperature procedure on standard steel can be used to compare how different specimens respond after a controlled dwell period.
Air temperature, specimen temperature, load, bonded area, and exposure time must remain consistent. Performance on standard steel may not represent adhesion to another surface, making application-substrate verification essential. A bond may show high peel resistance yet creep under constant load, or strong shear while remaining easier to remove than required. Shear must therefore be measured directly rather than inferred from tack or peel.
A reliable test plan treats the laboratory setup as part of the specification. Record the standard and procedure, test surface and cleaning method, adhesive thickness or coat weight, backing construction, specimen dimensions, application pressure, dwell time, temperature, number of samples, units, variability, and failure mode. Peel reports also need angle and speed, while shear reports require load and stopping time.
Comparison Check | What Must Match |
Test method | Same standard, edition, and procedure |
Specimen | Comparable adhesive thickness, backing, and dimensions |
Surface | Same substrate and preparation |
Conditioning | Same dwell time and temperature |
Mechanics | Same speed, angle, pressure, or load |
Reporting | Compatible units and failure mode |
These controls prevent construction differences from being mistaken for formulation changes. Backing stiffness can affect loop-tack measurements, while both adhesive and backing properties influence peel and shear responses. Acceptance criteria should include a maximum where excessive adhesion could cause residue, difficult removal, or surface damage, rather than relying only on minimum values.
Standard steel supports repeatable screening and production quality control, but it cannot reproduce every application surface. Representative materials can be used for relative peel evaluations, while shear performance measured on standard steel may not relate directly to another substrate. Final testing should use the actual PVC, PE, PET, metal, glass, coated sheet, or other production surface.
Surface energy, roughness, contamination, coatings, treatment level, and application temperature can alter wet-out and bond development. The finished construction matters too: carrier stiffness, film gauge, coat weight, drying profile, and coating method may change all three measurements. Standard-panel pressure sensitive adhesive testing can narrow the options, but production-representative trials should control final approval.

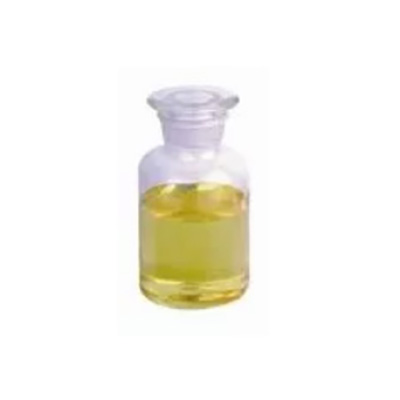

TAILAI TLW-815 is a high-tack solvent-based acrylic pressure-sensitive adhesive for PVC and PE tape or film applications. Its performance specifications include J.DOW ball tack of at least ball No. 12, PSTC #1 peel of at least 1.4 kg/in, and PSTC #7 holding power of at least 24 hr/in². These numbers cover three important performance areas, but their meaning still depends on the test construction and conditions.
The listed test construction uses a 25 μm adhesive film on a 25 μm PET substrate, dried at 93 ± 2°C for two minutes. Suitable applications include PVC tape, double-sided tape, PVC cold-lamination film, PET labels, and decorative labels. For a planned PVC or PE product, the values should serve as an initial reference and then be verified using the intended substrate grade, surface treatment, backing, coat weight, drying conditions, and production process. Results can vary across substrates, making application-specific pressure sensitive adhesive testing necessary before production.
Reliable PSA selection depends on understanding what each measurement actually reveals: tack reflects immediate grab, peel measures controlled removal resistance, and shear shows whether a bond can withstand sustained load without creeping. Pressure sensitive adhesive testing becomes most useful when the method, substrate, dwell time, temperature, and failure mode are evaluated together.
CHUZHOU TAILAI IMPORT&EXPORT TRADING CO.,LTD. supplies acrylic pressure-sensitive adhesives and supports product selection for different substrates, coating processes, and performance requirements. Matching these options to verified test results can reduce trial and error, improve production consistency, and help manufacturers choose a more practical adhesive profile.
A: It measures initial tack, peel resistance, and shear holding power, showing how quickly a bond forms, how it releases, and whether it withstands sustained loading.
A: Tack measures immediate grab after brief contact, while peel adhesion measures the force required to remove a bonded strip at a controlled angle and speed.
A: Peel angle changes force distribution and backing deformation, so the results are not directly interchangeable. Valid comparisons require matching geometry, speed, specimen width, and substrate.
A: A defined bonded area is placed under a constant parallel load, then monitored for movement or time until the adhesive creeps, separates, or fails.
A: Temperature, dwell time, pressure, coating thickness, surface energy, contamination, and backing stiffness can alter wet-out and deformation. Test conditions must remain controlled for meaningful comparisons.
A: Yes. A softer adhesive may wet the surface quickly and produce strong initial grab, yet creep under sustained load and deliver comparatively lower shear resistance.
