A foam tape may grip firmly during assembly yet begin to slide, lift, or leave residue once heat, weight, or foam recovery starts acting on the bond. That gap between immediate stickiness and lasting performance often comes down to two properties: tack, which helps the adhesive wet the surface quickly, and cohesion, which keeps the adhesive layer from flowing or splitting under stress.
Understanding this balance makes it easier to diagnose bond failures, compare test results, and choose a foam tape adhesive that performs reliably from application through long-term service.
A surface that looks smooth still contains peaks, valleys, coatings, and pores. When foam tape is pressed into place, a one-component foam tape adhesive must flow around those irregularities and create enough real contact area to begin bonding. Tack describes how readily that contact develops under limited pressure and short contact time. On a fast production line, this early wet-out can determine whether a part stays positioned long enough for the bond to build.
The need becomes greater on textured plastics, painted metal, curved trim, or slightly uneven parts. A conformable foam carrier can follow the shape, but the adhesive still needs enough mobility to reach the substrate instead of resting only on its highest points. Application pressure, dwell time, cleanliness, surface energy, and temperature all affect this process. Effective tack requires a viscoelastic response that allows rapid contact formation without excessive flow.
A finger-touch check may compare samples informally, but it does not control pressure, contact area, or surface condition. A sample that feels aggressive can perform poorly on the production substrate, while a less sticky sample may develop a stronger controlled bond. Production approval requires a repeatable tack method performed on representative surfaces.
After contact forms, the adhesive must support stress without losing its internal integrity. Cohesion helps the polymer network resist movement, edge squeeze-out, stringing, and internal rupture. When cohesion is too low, the adhesive may remain attached to both surfaces while splitting through its own thickness.
This matters in vertically mounted parts, compressed seals, and components exposed to vibration. A modest load can act for months or years. The question is not only whether the foam tape adhesive grabs, but whether it resists slow deformation for the required service period.
Tack and cohesion pull a formulation in different directions. A softer adhesive may establish contact quickly but creep under prolonged stress. A more structured adhesive may resist movement yet struggle to wet a rough surface within the available press time. Excellent tack can accompany weak cohesion, while highly cohesive materials may provide limited initial tack until the formulation is rebalanced.
The best foam tape adhesive is therefore neither the softest nor the hardest option. It needs enough viscous response to form contact and enough elastic response to remain stable afterward. That balance supports both practical assembly speed and long-term holding performance.
A high-tack, low-cohesion adhesive often passes the first visual check. The tape attaches quickly and the bond appears secure. Later, heat, gravity, foam recovery, or a constant shear load allows the adhesive mass to deform, and the component begins to move.
Typical signs include a mounted part slipping downward, adhesive pushing beyond the foam edge, or gummy material remaining on both surfaces. Failure may accelerate as temperature rises because the adhesive becomes more mobile. Extra application pressure might improve contact, but it cannot create the missing internal strength.
The opposite imbalance produces a different pattern. A highly cohesive adhesive may resist residue yet fail to establish enough contact during installation. Edges can lift, curved areas may spring away, and the tape may separate cleanly from one substrate. Extended pressure or dwell time may improve the bond because contact is developing slowly.
Poor preparation can look similar, so the failure location should be checked before changing the foam tape adhesive. Oil, dust, moisture, release agents, and low-surface-energy materials can all limit wet-out. Increasing coating weight adds adhesive mass but does not necessarily solve a mobility or compatibility problem.
Observed problem | Likely issue | What to examine |
Tape slides under constant load | Low cohesion | Holding power and service temperature |
Adhesive remains on both surfaces | Cohesive failure | Internal splitting |
Tape releases cleanly from one surface | Low tack or interfacial adhesion | Wet-out and surface preparation |
Edges lift soon after application | Incomplete contact | Pressure, temperature, and foam recovery |
Adhesive squeezes beyond the edge | Excessive flow | Coat weight and cohesive strength |
The table is a starting point, not a final diagnosis. Similar symptoms can have different causes when foam density, geometry, contamination, and temperature change together. Compare the failure surface, load direction, and timing before selecting a different adhesive.
Foam helps a tape bridge gaps and follow uneven geometry. During application, the carrier compresses so the adhesive can reach more of the substrate. After pressure is removed, however, the foam attempts to recover its original thickness, creating a continuing force that can pull at edges or place tension across the bond.
Tack must create sufficient contact before this restoring force challenges the interface. Cohesion must then prevent the adhesive from slowly flowing while the carrier continues to push back. A foam tape adhesive that performs well on a thin construction may behave differently on a thicker or more resilient foam.
Bond strength cannot be understood from one loading direction. Edge lifting concentrates force into a peel front, while a vertically mounted component places sustained shear parallel to the surface. A compressed seal can introduce tensile stress as the foam expands.
A tape can deliver strong peel performance and still creep under dead load. Peel is a progressive separation event, whereas static shear asks the adhesive to hold its shape continuously. Foam thickness, density, compression percentage, bond width, and component geometry all affect how those stresses reach the adhesive layer.
Temperature can move the same adhesive toward either side of the balance. Warmer application conditions may improve wet-out, yet excessive heat can reduce creep resistance. Low temperatures can limit conformity and cause early edge lift. Tack and failure behavior change as temperature alters the viscoelastic response of the adhesive.
Dust, oil, moisture, rough texture, and low surface energy can further reduce usable contact area. Plasticizer migration and repeated vibration may alter the bond over time. No single foam tape adhesive balance covers every foam, substrate, load, and operating range, so the service window must be defined before testing.
A sound test plan separates bond formation from bond retention. Tack methods evaluate how quickly contact develops under defined conditions. Peel testing measures resistance to progressive separation, while static shear or holding-power testing evaluates movement under sustained parallel load. These results are related but not interchangeable.
Loop tack, probe tack, and rolling-ball procedures also measure different aspects of initial behavior. Comparisons are meaningful only when the method, substrate, temperature, speed, and specimen construction are consistent. Separate procedures are used for 180-degree peel, shear holding, tensile behavior, and other properties because one test cannot describe every pressure-sensitive tape application.
The machine value is only part of the result. After separation, inspect whether failure occurred at the adhesive-substrate interface, within the adhesive mass, or inside the foam carrier. Adhesive failure often leaves one surface clean, cohesive failure leaves adhesive on both sides, and foam failure means the carrier tore before the bonded interfaces released.
Failure mode changes how the number should be interpreted. Two samples can produce similar peel values, yet one may leave heavy residue. A high result accompanied by uncontrolled foam tearing may also be unsuitable when predictable removal is required.
Standard panels create consistent quality-control comparisons, but they do not automatically predict performance on the production substrate. Approval testing should reproduce the intended foam density and thickness, coat weight, liner, lamination conditions, surface preparation, press pressure, dwell time, temperature, and load direction. Initial and aged measurements are both useful when the bond develops over time.
Production trials should also reflect drying efficiency, transfer coating, liner release, winding pressure, and converting steps. These variables can change the finished adhesive layer. A candidate should pass both controlled laboratory evaluation and a process-representative trial.

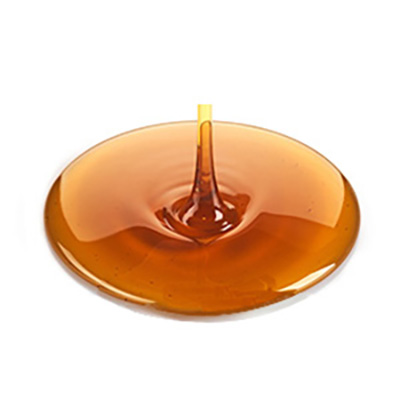

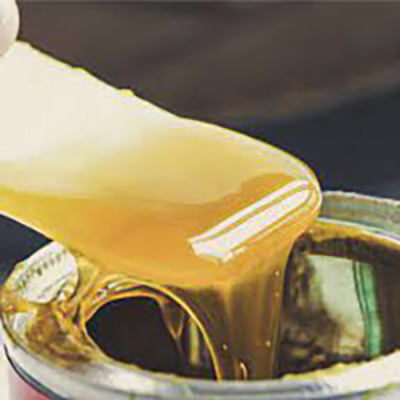

TAILAI TLB-F13 is a solvent-based acrylic adhesive developed for foam tape and PET applications. Its specifications include 40% ±1 solids, viscosity of 4,000–6,000 cps at 25°C, and initial tack of at least ball number 23 using the J.Dow method. Performance criteria also cover 180-degree peel strength under PSTC #1 and holding power under PSTC #7, allowing initial grab, peel resistance, and long-term holding ability to be considered together.
A representative coating setup uses a 68 μm coated film on a 25 μm PET substrate, with drying at 98 ±2°C for five minutes. These conditions provide a useful screening reference but do not guarantee identical performance on every foam, liner, coating weight, or bonded surface. Production testing remains necessary because the complete construction and processing conditions can alter the final result.
Evaluation | Question it answers | What it cannot prove alone |
Tack test | Does contact form quickly? | Long-term resistance to movement |
Peel test | Does the bond resist edge separation? | Holding power under constant shear |
Static shear test | Does the adhesive resist creep? | Initial wet-out on a difficult surface |
Failure inspection | Where does the construction fail? | Numerical bond strength |
Application trial | Will the complete tape work in production? | Performance outside tested conditions |
Use the results together. Confirm that the foam tape adhesive wets the real substrate within the available assembly time, survives the dominant service stresses, and fails acceptably after aging. High strength should not be achieved through uncontrolled residue, internal splitting, or foam damage.
Reliable foam tape performance depends on balance, not maximum stickiness. Tack must create sufficient surface contact during application, while cohesion must keep the adhesive layer stable under heat, load, vibration, and foam recovery. Evaluating tack, peel, holding power, and failure mode together gives manufacturers a clearer basis for selecting and validating an adhesive.
CHUZHOU TAILAI IMPORT&EXPORT TRADING CO.,LTD. supplies solvent-based acrylic adhesive designed for foam tape and PET coating applications, with specifications covering initial tack, peel strength, and holding power. Used with production testing, these materials can support more consistent coating decisions and reduce avoidable bond failures.
A: Tack controls how quickly an adhesive wets a surface, while cohesion determines how well the adhesive layer resists splitting, flowing, or creeping after bonding.
A: High tack creates strong initial contact, but insufficient cohesion allows the adhesive to deform under heat or sustained load, causing slippage, squeeze-out, or residue.
A: Use separate tack, peel, and static shear tests. Together, they assess initial wet-out, resistance to edge separation, and long-term holding power under load.
A: Low temperatures can reduce wet-out and initial tack, while high temperatures may soften the adhesive and lower its cohesive resistance to creep under continuous stress.
A: Residue often indicates cohesive failure, meaning the adhesive split internally instead of releasing cleanly from the substrate during removal or service-related separation.
A: Match the foam tape adhesive to the required tack, holding power, foam thickness, substrate compatibility, service temperature, and expected peel or shear load.
